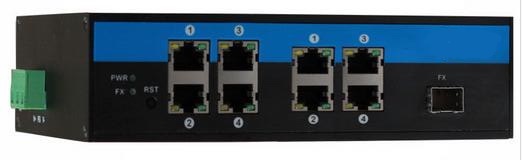

The 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at,
power on POE IP cameras through the Ethernet cable, simple construction,
power range up to 100meters, meet IP30 protection degree and EMC industrial
grade requirements, DIN rail installation, pass through dangerous environmental
certification and comply with FCC and CE standards. The reliable industrial grade
design could ensure continuous and stable operation of the automation system.
Feature
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af power on to 1 ~ 8RJ45 ports
8x 10/100/1000Mbps Auto-sensing RJ45 ports
1x 1000Mbps SFP fiber ports
4KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex and halfduplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
Max power to 15.4W under af standard, 30W under at standard to each PoE port
Detect the PoE models of electrical equipment
A store-and-forward switching mechanism
Specification
|
Product Description |
10/100/1000Mbps Industrial POE Fiber Switch (1F+8TP) |
|
Port |
1x 1000Mpbs SFP port
Single Mode: 1310nm/1550nm,20Km; 1490nm/1550nm,40~120Km
Multimode: 1310nm,2Km
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Switching features |
Transmission mode: storage and forward
System bandwidth: 40Gbps (non-traffic jam) |
|
Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km |
|
LEDs |
Power, network, fiber |
|
Power supply |
Input voltage: DC 12-36V
No-load power consumption: 5W
Reverse polarity protection: support
POE power supply input voltage: 48V (max 53V),
Single PoE power supply output power: 15.4W (port 1~4)
(802.3at standards required special instructions) |
|
Environment |
Working temperature: -40°~ 85°C
Storage temperature: -40°~ 85°C
Working humidity: 10%~90%,non-condensing
Storage humidity: 10%~95%,non-condensing |
|
Industry Standards |
EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3;EN 61000-4-3 (RS) Level 3;
EN 61000-4-4 (EFT) Level 3;EN 61000-4-5 (Surge) Level 3;
EN 61000-4-6 (CS) Level 3;EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4 |
|
Safety |
CE Mark, commercial
CE/LVD EN60950 |
|
Mechanical
information |
Shell: Corrugated metal shell
Safety class: IP30
Dimension: 183 x 118 x48mm
Mounting method: Din-rail mounting |
|
Warranty |
Replacement within 3 years; 5 years repairing |
